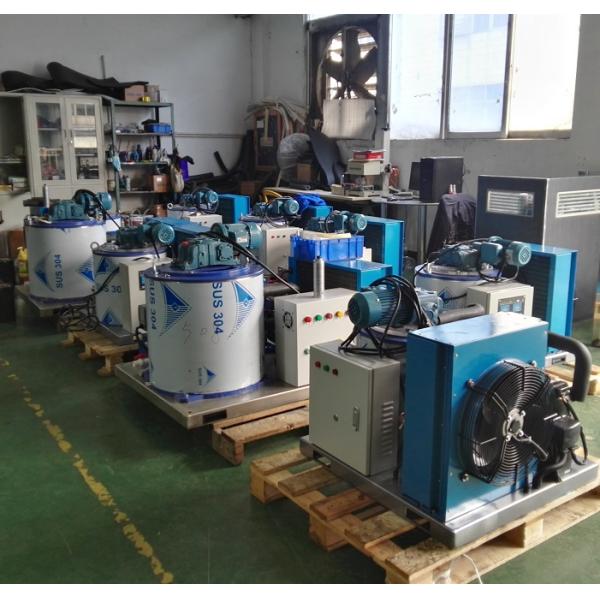

China Manufacturer Marine ice machine evaporator Flake ice maker machine evaporator 20ton
Evaporator structure
Ice flake evaporator advantages:
(1)Be made of low-temperature pressure vessel special materials and passed precision processing;
(2)More sufficient evaporation area and better performance with dry style evaporation way;
(3)Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;
(4)Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.
(5)Using imported refrigeration accessories;
(6)All water supply line are made of stainless steel, high sanitary condition;
(7)Fast ice forming & falling speed, ice begins within 1 to 2 minutes.
(8)Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.
(9)Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.
(10)Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
Tips: (1)Evaporator size and installation direction can be customized according to customers' requirements;
(2)The material of evaporator wall and up and down pedestal is available (304&316).
China Manufacturer Marine ice machine evaporator Flake ice maker machine evaporator 20ton
China Manufacturer Marine ice machine evaporator Flake ice maker machine evaporator 20ton
Specifications of the flake ice evaporator
- Strict ERP system
- Radio graphic testing (X-RAY) for welds
- Weldless forming for ice blade
- heat treatment (annealing) for stress relief
- Chromium coating for improved wear resistance (Carbon steel only)
- Scientifically designed refrigerant chamber
- Smooth ice scraping
- No risk of deformation or refrigerant leakage
- High stability, high cooling efficiency and long life (8-10year)
China Manufacturer Marine ice machine evaporator Flake ice maker machine evaporator 20ton
Evaporator Detailed Technical parameters
<
| Model No. | LRD-15T | LRD-20T |
| Ice Capacity (ton) | 15000kg/24h | |
| Cooling Capacity (kw) | 95kw | 130kw |
| Input Power in total (kw) | 1.2 | 1.2 |
| Reducer power (kw) | 0.75 | 0.75 |
| Water pump power (kw) | 0.37 | 0.37 |
| salt water pump power(kw) | 0.016 | 0.016 |
| Power supply | 3P-380V-50Hz | 3P-380V-50Hz |
| water supply pressure | 0.1Mpa－0.5Mpa | 0.1Mpa－0.5Mpa |
| refrigerant | R22&R404 | R22&R404 |
| Flake ice temp. (℃) | -5℃ | -5℃ |
| N.W. | 1265kg | 1968kg |
| Unit Size(mm) | 2160mm*1650mm*1865mm | 2160mm*1650mm*2050mm |
High Performance Salt Water Ice Flaker Making Machine Evaporator 5 ton Ice Flake Maker generator
China Manufacturer Marine ice machine evaporator Flake ice maker machine evaporator 20ton
Shenzhen Lier Machinery Equipment Co., Ltd is a high-tech enterprise integrating manufacturer, R&D, engineering installation and after-sale service for ice machine equipment since 2009. Oriented by quality, integrity and innovative concept of energy saving & environmental protection, we are one of a leading manufacturers of ice machine in China, our products including flake ice machine, tube ice machine, cube ice machine, block ice machine.
